MicroFox T-Hunt Transmitters

The Byonics MicroFox line of transmitters include both a transmitter and a foxhunt controller in one device to make putting on a hidden transmitter hunt easy. Just conenct to any 2-meter SMA antenna, add a battery, configure with your callsign, and hide the transmitter.

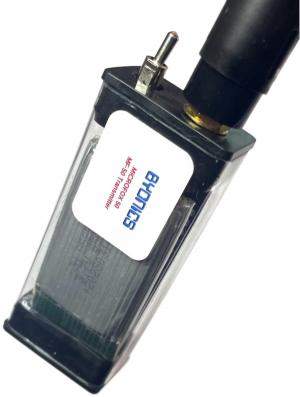

MicroFox 50

The MicroFox 50 is a small T-Hunt transmitter capable of transmitting on any 2-meter frequency (144MHz - 148MHz) with user adjustable power from 0.05mW to 50mW and a USB rechargeable LiPo battery. It can be heard over 3 miles away, so it's great for a walking or ARDF style hunt. It includes a 650mah Li-Po battery. The MF-50 case size is 70x29x18mm.

DownloadMicroFox 50 User Manual - v0.2
LinkWeb Based Configuration Tool

Note: MicroFox 50 out of stock until late April.

Add To CartMicroFox 50 - $100
Includes transmitter, battery, and case. Does not include antenna, or Micro-USB cable.

Add To CartMicroFox 50 Combo - $130
Includes transmitter, battery, case, V4 SMA antenna, and Micro-USB programming cable.

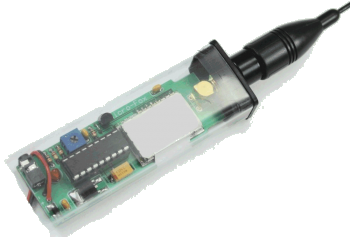

MicroFox 15

The MicroFox 15 is a 15mW T-Hunt transmitter capable of transmitting on any 2-meter frequency (144MHz - 148MHz). It can be heard over 3 miles away, so it's great for a walking or ARDF style hunt. A standard 9V battery should provide about 20 hours of use at a 50% duty cycle. With the USB or serial programming cable and Windows configuration software, the user can control all timing, tones, and Morse Code ID.

DownloadMicroFox 15 User Manual - v1.7
DownloadMicroFox Config Program - Windows Configuration Program v1.65 and firmware for MF-15 and MF-15S.
LinkNew Web Based Configuration Tool

Out of stock. Replaced by MicroFox 50 above.

MicroFox 15S

The MicroFox-15S is similar to a MF-15, but is small enough to fit with a LiPo battery inside a 35mm film canister (32mm x 54mm). It uses the same firmware and configuration sofware as the MF-15, so it has all the same features, but in a smaller form. It will run for about 16 hours at full duty cycle.

DownloadMicroFox 15S User Manual - v0.6
LinkNew Web Based Configuration Tool

Out of stock. Replaced by MicroFox 50 above.

Add To CartMicroFox LiPo 650 - $12
Additional 650mAh LiPo battery.

MicroFox PicCon

The MicroFox PicCon combines a 700mW transceiver and our PicCon fox controller capable of operating on any 2-meter frequency (144MHz - 148MHz). It runs on 3 AA batteries for about 20 hours at 1/2 duty cycle. Because it includes a transceiver, it can be remote controlled via DTMF tones. In addition to starting and stopping the transmitter, all timing, tones, Morse code ID, and other user settings can be remotely adjusted at any time. All settings can also be configured with either a serial or USB programming cable and Windows configuration software. Note that the case was previously beige or bright orange and is now black.

DownloadMicroFox PicCon User Manual - v0.61
DownloadMicroFox Config Program - Windows Configuration Program v1.95 and firmware for MF-PC and MF2.
DownloadMicroFox Config Program - Windows Configuration Program v1.9 and firmware for MF-PC and MF2.
LinkNew Web Based Configuration Tool

Add To CartMicroFox PicCon - $126
Does not include SMA antenna, or programming cable.

Add To CartMicroFox PicCon USB Combo - $165
Includes MF-PC, V2 SMA antenna, and USB programming cable. USB Drivers can be found below.

Add To CartMicroFox PicCon Serial Combo - $160
Includes MF-PC, V2 SMA antenna, and serial programming cable.

MicroFox2

The MicroFox2 is similar to the MF-PicCon, but is small enough to fit with a LiPo battery inside a small clear rectangular tube. It uses the same configuration sofware and very similar firmware as the MF-PC, so it has all the same features, but in a smaller form. It will run for about 5 hours at half duty cycle.

DownloadMicroFox2 User Manual - v0.5
DownloadMicroFox2 Firmware Update - v0.61
LinkNew Web Based Configuration Tool

Add To CartMicroFox2 USB Combo - $149
Includes MF2, V4 antenna, 650mAh LiPo battery, battery charger, and USB programming cable.

Add To CartMicroFox LiPo 650 - $12
Additional 650mAh LiPo battery.


Add To CartUSB-2.5 Cable - $23
USB to 2.5mm stereo serial cable
DownloadUSB cable drivers - v1.7

Having driver problems with Windows 11? Try this link

Foxhunt List


Do you have foxhunts in your area? Are you looking for a nearby hunt? Visit the new site https://foxhuntlist.com to find or submit a hunt.
